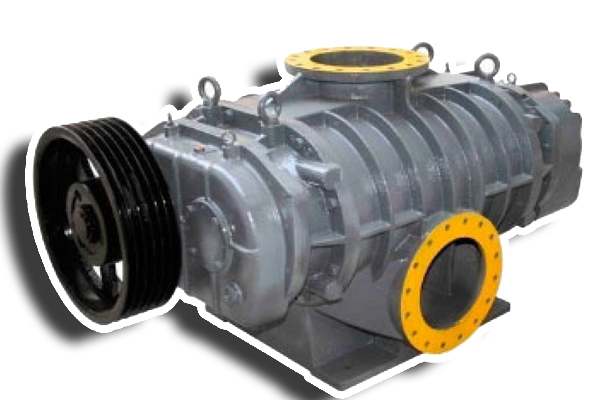

Tri Lobe Blower

AIRSON TRI LOBES ROOTS BLOWER, Known also as POSITIVE DISPLACEMENT ROTARY COMPRESSOR, Are used in conditions ranging from strong vacuum to high pressure in all branches of industries especially in waste water reatment plant. The simple design, easy handling, and stable performance make possible of wide range of applications. Its main characteristic is to produce constant flow of gas at different pressure and efficiency are normally high.

Important feature is that the pumped gas does not get contaminated because there are no lubricants in the area in which the compression occurs.

The blower consist of a cost-iron casing in which two rotors with conjugate shape rotate and are sync-hronied by a set of timing gars. During the rotation, there is no contact either between the Iobes and the casing.

Two front and rear side covers close each casing: the bearing of the shafts and the sealing devices to avoid gas leakage are located there.

Operating Principle

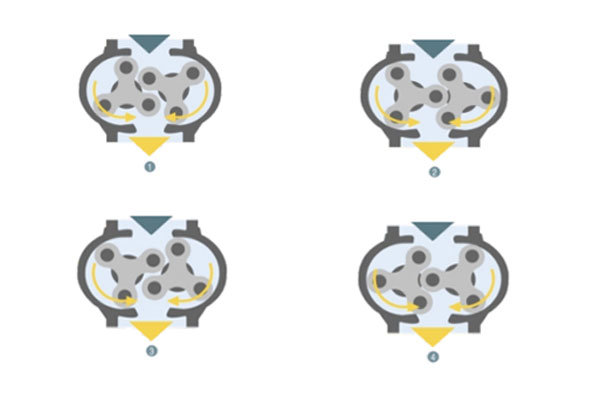

The two tri-lobe rotors rotate one opposite to the other: their movement is synchronized by a set of timing gears. The geometric configuration of the lobes allows them to have, at any moment, a generatrix in common; due to very low machine tolerance, this common generatrix acts also as a seal device for both rotors.

During the operation, one or two lobes of each rotor come into contact with the internal surface of the casing : this crete a chamber in which the gas is trapped. As the rotation continues, the trapped gas moves along until it reaches the position of discharging port.

The two rotors make six intake and exhaust cycles per revolution; therefore the capacity of the roots blower is determined by its operating speed and increase proportionally with the speed, but is independent from the pressure differential between inlet and outlet ports.

Fetures

  • Bearing and gear portion is totally separate from air operating part – air and moisture will not go to oil chamber
  • Noise Level will come down approx. 5 dBA
  • Vibration Level will be comparatively much lesser
  • Less Air pulses – increased efficiency and stable air flow
  • 100 % Oil Free Air
  • 40 % Longer Bearing life
  • Bare minimum maintenance

Advantage Of Tri Lobes Design

Owing to new TRI lobes rotor design, the reverse flow pressure variation period is only 2/3 of that of a conventional 2 lobes rotor the peak pressure value is also lower. So the noise and pressure pulsation are greatly limited. Advantages of AIRSON TRI LOBES ROOTS BLOWER are:

  • Less back flow, steady air flow rate, lower vibration and noise.
  • Discharge pressure pulsations are reduced, so lighter loading of earing and timing fears ensures the long serving life.
  • Running on the same operating speed, the 3 lobes blower can deliver arge air flow and volume than conventional 2 lobes type.
  • Adequate clearance between the rotors and the rotors with the casing ensure no contact during operation, and this make the efficiency even higher.
  • The precision of rotor is fully controlled and variation of precision between blowers is almost nil bbecause the rotors are produced by utilizing a precision NC machine.
  • The rotors are dynamically balanced in the fabrication stage already, So these rotors are almost free from vibrations.

Why Select Airson New Tri Lobe Roots Blower?

Lower Noise

Tri Lobe Design can efficiently reduce Noise by Approx 5 DBA

Longer Bearing Life

Less vibration transmitted through the result approx 20% Longer Bearing Life.

Reduce Vibration And Noise

Airson Tri Lobe Blower ate new series roots type Blower Rotors Are Manufacturing on hight precision CNC Machine ensuring High Performance Lower Noise Lever & Vibration

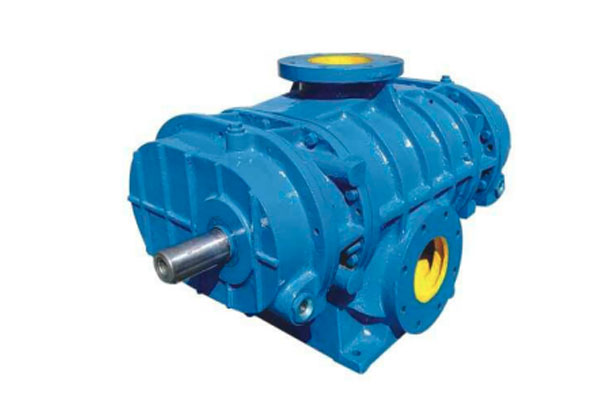

TRI-LOBES-application

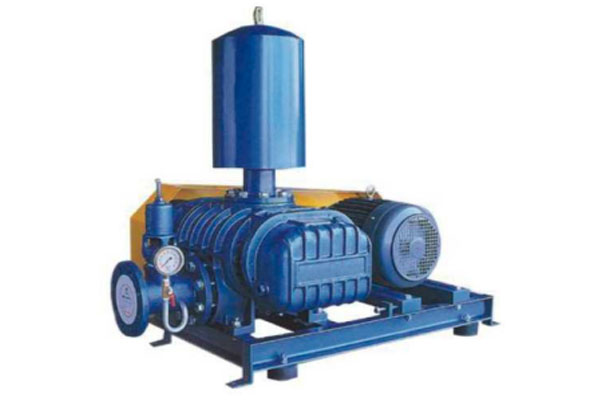

TRI-LOBES-application2

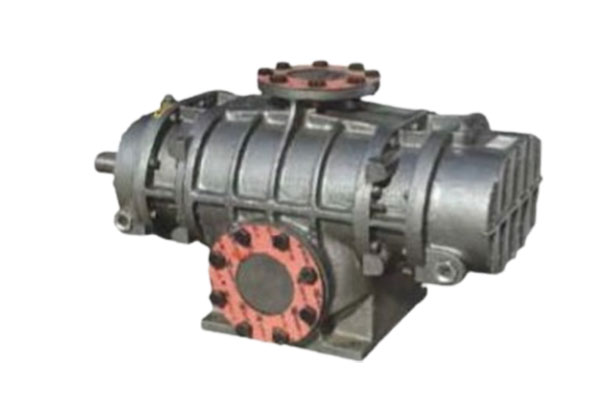

TRI-LOBES-applic3ation

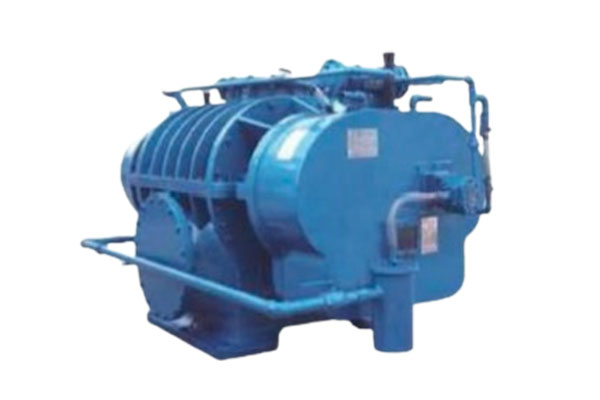

TRI-LOBES-application4

Application

  • Pneumatic Conveying

  • Blending

  • Aeration

  • Effluent Treatment

  • Water Treatment

  • Cleaning

  • Sewage Treatment

  • Air Drying

  • Dewatering

  • Tank Agitation

  • Vacuum Molding

  • Kiln Charging

  • Central Vacuum Cleaning

  • Duct Collection

Industries Served

  • Cement

  • Power

  • Food Processing

  • Construction etc….

  • Steel

  • Chemicals

  • Petrochemical

We reserve the right to change Specification/Dimension without prior Notice.

Machines are supplied either bare shaft or as a complete set with:

  • Base Frame

  • Inlet Filter

  • Discharge Silencer

  • Non Return Valve

  • Safety Guards

  • Electric Motor

  • Suction Silencer

  • Pressure Relief Valve

  • Coupling of V Belt Drive

All Machines are individually tested on test bench Date Prior to Dispatch.
